Technical Specifications:

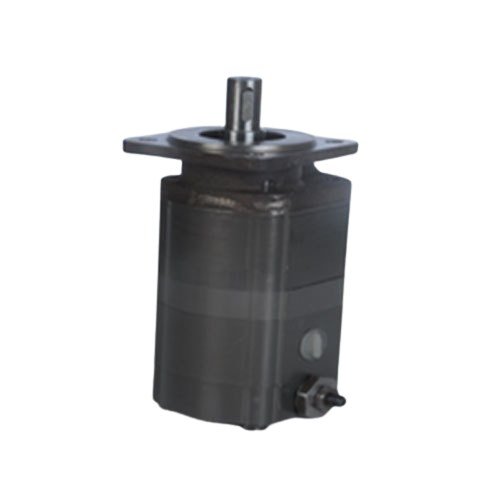

| HI-LOW GEAR PUMP | |
| First stage smaller displacement High pressure | From 1 to 29 cm3/rev – P1= up to 250 bar |
| Second stage bigger displacement Low pressure | From 1 to 29 cm3/rev – (pressure set by Pressure relief valve) |
| Unloading valve | Standard setting from 30 to 50 bar, special settings on request |
| RPM range | From 500 rpm to 4000 rpm |
| Ports | Common inlet. Common outlet. Side ports code FG, FA, D |
| Flange and shafts | According to pump type & customer requirement |
Features:
- Own design product.
- Flow combination-any combination between 7-LPM to 50-LPM.
- Maximum hi-pressure up to 250 bar.
- Low power consumption.
- This can replace use of PCM block (for hi-low application)
- Pump itself include unloading valve.
- Adjustable unloading pressure 30 ± bar.
